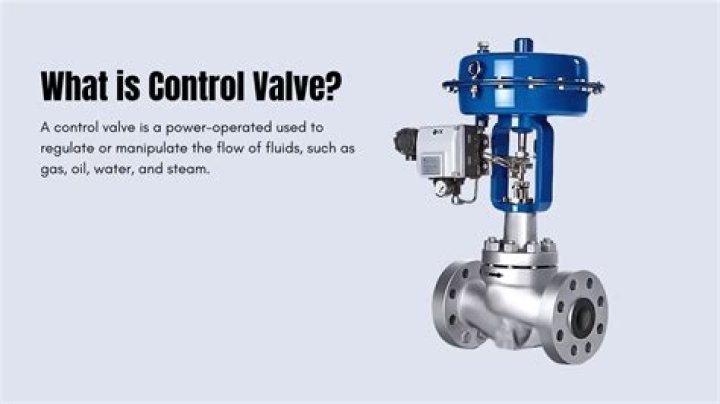

What is Sigma in control valve?

Sigma is the most widely-accepted and precise cavitation index used to quantify and predict cavitation in control valves. Simply put, Sigma is the ratio of the potential for resisting formation of vapor bubbles to the potential for causing formation of vapor bubbles.

What is FL and xT in control valve?

ANSI/ISA liquid sizing Equations use a pressure recovery factor, FL, to calcu- late the ∆Pch at which choked flow is assumed for sizing purposes. For compressible fluids, a terminal pressure drop ratio, xT, similarly describes the choked pressure drop for a specific valve.

What is cavitation in control valve?

Cavitation happens in control valves when there's variation in the flow velocity, in particular, when the fluid in the valve accelerates rapidly. It occurs when the pressure drop in the valve exceeds a critical point or when downstream pressure exceeds the fluid vapor pressure.

What is cavitation and flashing?

Flashing is an in- to- out event while cavitation is an out- to- in event. Flashing occurs at low pressure and cavitation occurs when the low-pressure bubbles collapse at the high-pressure region within the pump casing producing a shock wave. Reduction of volume of the vapor sphere concentrates matter and energy.

What are the three types of control valves?

There are three primary types of control valve trim:

• Snap Trim (also referred to as Quick-Opening trim)
• Nominal Trim (also referred to as Linear trim)
• Equal Percentage Trim.

Control Valve Sizing Basics: What is Pressure Drop?

What is trim size in control valve?

It is diameter of the port or seat. You will find trim that is the full diameter of the valve or a reduced port size.

What is bonnet in valve?

An assembly including the part through which a valve plug stem moves and a means for sealing against leakage along the stem. It usually provides a means for mounting the actuator. Sealing against leakage may be accomplished by packing or a bellows.

What is critical pressure in control valve?

At this point, the steam velocity will be sonic and the flow area is at a minimum. The steam pressure at this minimum flow area or 'throat' is described as the 'critical pressure', and the ratio of this pressure to the initial (absolute) pressure is found to be close to 0.58 when saturated steam is passing.

What is choked flow in control valve?

Choked flow is the point at which decreasing downstream pressure will not increase the flow through a valve. This typically happens in high differential applications in a high pressure control valve in gas back pressure or pressure reducing service.

How is cavitation formed?

cavitation, formation of vapour bubbles within a liquid at low-pressure regions that occur in places where the liquid has been accelerated to high velocities, as in the operation of centrifugal pumps, water turbines, and marine propellers.

How do you calculate valve cavitation?

The cavitation coefficient K_c is the ratio between the valve pressure drop at which cavitation starts and the difference between the inlet and the vapor pressure of the application. The allowable maximum ∆p before cavitation begins is ∆p = K_c (p₁ – p_v).

How do you calculate cavitation number?

The value of the cavitation number, i.e. CN = (p₁ − p_v)/(p₁ − p₂), determines the extent of the region that is filled with vapour inside the nozzle.

How do you predict cavitation?

No standard exists for predicting cavitation damage. Some valve manufacturers predict the beginning of cavitation damage by defining an incipient damage pressure drop, which this author will call ΔP_ID, using a K_C factor.

What is Cv value of control valve?

Valve Flow Coefficient (Cv) is the flow capability of a control valve at fully open conditions relative to the pressure drop across the valve. It is defined as the volume of water (GPM in the US) at 60°F that will flow through a fully open valve with a pressure differential of 1 psi across the valve.

What is a Cv rating?

The Cv rating for each valve is listed in the tables found in the valve catalog. The definition of Cv is the # of gallons of water that will flow through the valve with a 1 PSI pressure differential when the valve is open. The equations below can be used to determine: Flow Rate, given the Cv and ΔP.

What is Mach number in control valve?

The valve outlet Mach number is defined as the ratio of the fluid velocity at the valve outlet to the sonic velocity in the fluid at the given temperature. It is an important parameter in determining not only the noise level in the valve, but also in calculating the potential for vibration in the valve/pipe system.

What causes choked flow?

8 Choked flow. Choked flow occurs in gases and vapors when the fluid velocity reaches sonic values at any point in the valve body, trim, or pipe. As the pressure in the valve or pipe is lowered, the specific volume increases to the point where sonic velocity is reached.

What is control valve FL?

FL. liquid pressure recovery factor for a control valve without attached fittings dimensionless. FLP. combined liquid pressure recovery factor and piping geometry factor of a. control valve with attached fittings.

What is the basic difference between choking and cavitation?

Cavitation happens when the depressurization causes two-phases (liquid and vapor). It is the vapor phase that causes cavitation. Hope this helps answer your question. Choked flow is a fluid dynamic condition associated with the Venturi effect.

What is valve recovery factor?

The Valve Pressure Recovery Factor is used to quantify this maximum velocity at the vena Contracta and is derived by testing and published by control valve manufacturers. The Higher the Valve Pressure Recovery Factor number the lower the downstream recovery, so globe style valves have high recovery factors.

What is pressure recovery factor?

The difference between exit pressure P2 and pressure at the vena contracta is called pressure recovery. This is expressed as Pressure Recovery Factor (often abbreviated as “PRF” or “F_L”) that is used to determine the true pressure drop across the valve seat, and to determine if cavitation is likely to occur.

What is meant by critical pressure?

For a pure substance, the critical pressure is defined as the pressure above which liquid and gas cannot coexist at any temperature. The critical temperature for a pure substance is the temperature above which the gas cannot become liquid, regardless of the applied pressure.

What is packing on a valve?

Valve packing is a component in a valve that forms pressure seal between the inside of the valve and the outside of the valve, keeping the process fluid from leaking out. Over time, the packing will wear in, relax, or loosen up with process temperature, or even seasonal ambient temperatures, and begin to leak.

What is OS & Y gate valve?

OS&Y means “outside stem and yoke” or "outside screw and yoke". OS&Y gate valves operate by opening and closing via a gate, which lowers into or rises out of the valve. Raising the gate allows water to flow through the valve while lowering the gate cuts off the water flowing through the valve.

What is a globe valve?

A globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.
