What is RYB phase sequence?

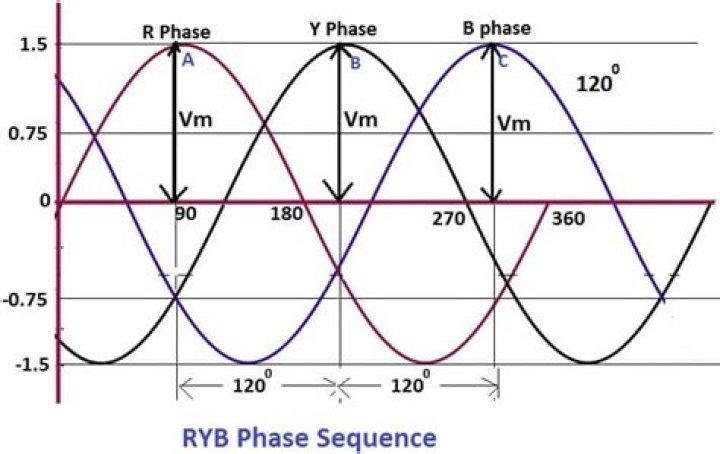

The phase sequence is also known as phase rotation. if the order of phase sequence in 3 phase system is denoted as RYB, then the R phase attains its positive peak value first, after 120 degrees the Y phase attains its positive peak value, and after 120 degrees B phase attains its positive peak value.

What is RYB in phase?

RYB simply stands for Red, yellow and Blue respectively in a three phase electrical system. In a three phase electrical system, the three phases are separated by an angle of 120 degrees and each phase is given a specific colour, i.e. R,Y and B for the phases to be identified.

What is phase sequence in 3 phase system?

Phase rotation, or phase sequence, is the order in which the voltage waveforms of a polyphase AC source reach their respective peaks. For a three-phase system, there are only two possible phase sequences: 1-2-3 and 3-2-1, corresponding to the two possible directions of alternator rotation.

How do I check my RYB sequence?

The meter terminals are marked with a certain phase sequence order. Once the disk rotates, the direction of the arrow on the disk shows the phase sequence, based on the marks. The tool rotates clockwise when the phase sequence is correct (RYB) and anticlockwise when the phases are reversed.

What is the difference between RYB phase sequence and rby phase sequence?

The phase sequence can be taken as RBY if R followed by B phase is at 120° later and Y phase is at 240° later than the R phase. RYB is considered as a positive sequence, whereas RBY is a negative sequence supply, as shown in the figure.

What is Phase Sequence - electrical interview question

What is RYB and Uvw?

Each letter in RYB and UVW mentions each phase of the three phase system. Both says about the phase sequence of the power system. Here R- Red, Y- Yellow color and B means blue color. But incase UVW means just three English letter.

What is balance and unbalance load?

An unbalanced 3 phase load is one in which the load is not equally distributed over all the three phases. To obtain the equivalent 3 phase rating the highest single phase loading must be multiplied by 3. An unbalanced load give rise to unequal phase to phase and phase to neutral voltages.

How do I know if my supply is 3 phase?

The best way to tell if a property has a three phase supply is by looking at the electrical fuse (sometimes called electricity supply, service head, cut out). Typically a single phase will have one fuse and a three phase will have three 100amp fuses.

What is the zero sequence current?

Zero-sequence current is the vector sum of the phase currents and must flow in the neutral or ground. The sample system generator is connected to the delta winding of a Generator Step Up (GSU) transformer. With no neutral return path, zero-sequence current can not exist.

What is positive and negative phase sequence?

Physically, in a three phase system, a positive sequence set of currents produces a normal rotating field, a negative sequence set produces a field with the opposite rotation, and the zero sequence set produces a field that oscillates but does not rotate between phase windings.

What is the full form of RYB?

RYB (an abbreviation of red–yellow–blue) is a subtractive color model used in art and applied design in which red, yellow, and blue pigments are considered primary colors.

What are the 3 phase Colours?

For three-phase cables the phase colours are brown, black and grey, instead of red, yellow and blue, respectively, and the neutral colour is now blue instead of black.

What is a 3 phase motor?

A three-phase motor is an electric machine that transforms electric power into mechanical energy by means of electromagnetic interactions.

How many wires are in a 3-phase?

Three-phase has four wires: three actives (called phases) and one neutral.

Why is there no neutral in 3-phase?

Fact 3: The current in the neutral wire is the phasor sum of all the line currents. In a balanced system, when all currents and their power factors are the same, the phasor sum of all line currents is 0A. That's the reason why there is no need for neutral wire in a balanced system.

What is the voltage of three-phase?

A three-phase connection, on the other hand, consists of three separate conductors that are needed for transmitting electricity. In a single-phase power supply system, the voltage may reach up to 230 Volts. But on a three-phase connection, it can carry a voltage of up to 415 Volts.

How many amps is a 3 phase?

If a three-phase supply is available, then the 24,000 watts are divided by 3, meaning that 8000 watts is being used per phase. Now the current per phase is also down to a third of what it would be with a single phase supply (about 30 amps per phase, rather than 100).

What is the symbol for 3 phase?

Three-phase electric power (abbreviated 3φ) is a common type of alternating current used in electricity generation, transmission, and distribution.

Can I use 3 phase at home?

The short answer is yes, you can get 3-phase power at home. Electricians can handle the electrical work but they are not allowed to change the supply, which must be done by the distribution network operator (DNO).

What is the formula of phase voltage?

Phase voltage, on the other hand, is the potential difference between one phase (R, Y or B) and neutral junction point, denoted by V_phase = V_R (voltage in red phase) = V_Y (voltage in yellow phase) = V_B (voltage in blue phase).

What is 3 phase load balancing?

Three-phase load balancing occurs when the loads of power supplies, such as a three-phase rack PDU, are spread evenly across all three phases (L1/L2, L2/L3, and L3/L1). It can be achieved by having an equal number of devices plugged into PDU outlets for each phase and drawing an equal power load on each phase.

What is star connection?

: a method of connecting polyphrase circuits in which one end of each phase line is connected to a common neutral point that may be connected to the earth as protection against lightning or to a wire to which all the other neutral points of the system are connected — compare delta connection.
