What is maximum head height on a water pump?

Max Head refers to a pump's capability to push water upwards (also known as 'vertical lift'). So for example, a pump which states 'Max Head: 7m' means the pump will be able to push water flow up to 7 metres high from the water surface. What is often overlooked is that at 7 metres lift, the pump will deliver zero flow!

What is the maximum height a pump can pump water?

The atmospheric pressure would be capable of sustaining a column of water 33.9 feet in height. If a pump could produce a perfect vacuum, the maximum height to which it could lift water at sea level would be 33.9 feet, as shown in Example 1.

What does Max head mean on a pond pump?

The top height the pond fountain pump can lift the water up from the pond surface is called “maximum head.” Any horizontal/diagonal flow is then measured by its length and one foot is added to the maximum head per 10 feet of horizontal/diagonal distance.

How do you calculate the maximum head of a pump?

The head is usually the maximum height that the pump can lift, and is indicated by H. The most commonly used pump head calculation formula is H = (p2-p1) / ρg + (c2-c1) / 2g + z2-z1.

What is maximum discharge head?

Discharge Head: This is the vertical distance that you are able to pump liquid. For example, if your pump is rated for a maximum head of 18 feet, this does not mean that you are restricted to 18 feet of pipe.

Pump Head: Simple Explanation

What is pump head height?

The terms "head height" or "lift" are used to indicate this vertical height, measuring how high the water can be pumped for a particular application. Each pump has a published graph showing its flow rate at various heads.

What is head range in water pump?

Head Range – Head here refers to the discharge head – the vertical distance that you will be pumping the water. The head range should fall within this distance for the water pump to pump water effectively. This is measured in meters (m).

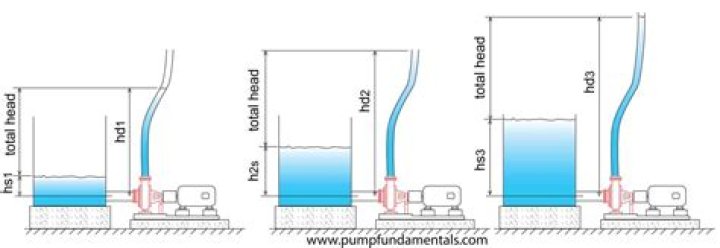

What is total head on a pump?

The total head of the pump is the difference between the total discharge head (point 2) and the total suction head (point 1). The term “total” indicates that it includes the static pressure head (h), the velocity head (hv), and the elevation head (Z). The equation for total head (pump) can be expressed in Equation 2.

How do you calculate water head?

Divide the depth in inches by 27.71-inches/psi, or the depth in feet by 2.31-feet/psi which are the English unit conversion factors. The result is the water head pressure expressed in psi.

What is Max head height?

Max Head refers to a pump's capability to push water upwards (also known as 'vertical lift'). So for example, a pump which states 'Max Head: 7m' means the pump will be able to push water flow up to 7 metres high from the water surface.

What is head height in a pond?

To find the head height, measure the vertical distance from the surface of the water to the top of the waterfall. Remember to add 1 foot of head for every 10 feet of pipe that will connect the pump and waterfall.

How high can a 1 hp pump push water?

You can expect a 1/2 HP submersible pump to raise your water up to 10 feet out of the ground. This lift rate makes the 1/2 HP pump ideal for homes closer to sea level. 1/2 HP pumps tend to have shorter pipe lengths than their competitors, as well.

How far can a pump pull water vertically?

How Far Can A Pump Push Water Vertically? There may be a limit of 25 feet per second on vertical suction lift of pumps at sea level because of atmospheric pressure. No, you're allowed to use more than 100 feet of suction pipe for an above-ground liquid source if it stays below 25 feet in the pumping center.

Which water pump is best for 60 feet height?

Very strong aluminum body and sturdy motor. Capable for lifting 60 feet height and pull 15 feet depth. Its suction and delivery are 1″ x 1″. So, overall, Lakshmi 0.5 HP Mono Block Water Pump is a nice energy saver.

What does 5m head mean?

So, what is pumping head or just “head?” Head is the maximum height that a pump can move fluid against gravity. The purest example of this is if you have a vertical pipe extending straight up from the discharge outlet. A pump with 5m of head will pump fluid up the pipe 5m from the discharge outlet.

What is pump minimum head?

The minimum positive suction head describes the suction head required in order to ensure proper operation of the pump (e.g. prevention of cavitation).

How do I choose pump head?

If the water level is 10 feet below the pump suction connection then the static head will be 10 + 15 = 25 feet. Therefore the total head will have to be at least 25 feet plus the friction head loss of the fluid moving through the pipes.

What is head rise to shut off?

The head rise to shutoff in a centrifugal pump is strongly dependent on its specific speed. That is to say a low specific speed pump (which has high head and low flow), will have a much lower head rise to shutoff than a high specific speed (low head, high flow) pump.

What does ft head mean?

Feet of Head means the resistance in a hydraulic system based on the equivalent to the height of a column of water that causes the same resistance (100 feet of head equals 43 pounds per square inch). Also see "Total dynamic head".

How high can a centrifugal pump lift?

Theoretically, all centrifugal pumps can lift water not more than 10.33 m at sea level. If the liquid is below the pump datum, the vertical distance between the pump impeller and the surface of the liquid on the suction side of the pump is referred to as the suction lift.

Can a pond pump be too powerful?

Too strong of a flow can keep the water stirred up and muddy-looking, creating an unpleasant appearance that may also cause problems for any fish and plants you have in the pond.

What is pump operating head?

Simply stated: a pump's head is the maximum height that the pump can achieve pumping against gravity. Intuitively, if a pump can produce more pressure, it can pump water higher and produce a higher head.
