What is difference between iron loss and core loss?

Iron loss: This is defined as the loss that is caused due to the alternating flux in the core of the transformer. As the loss occurs in the core, therefore the iron loss is also known as core loss.

What is the difference between iron loss and copper loss?

The copper loss and iron loss in the transformer are types of electrical losses that take place in the core and winding of the transformer. The iron loss occurs due to variation of flux density in the transformer core and copper loss occurs due to I²R in the transformer winding.

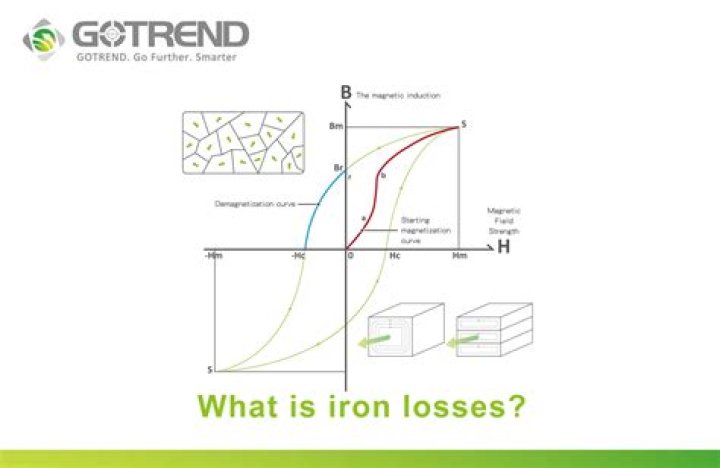

What is iron losses?

Definition of iron loss

: the loss of available energy by hysteresis and eddy currents in an electromagnetic apparatus (as a transformer) — compare copper loss.

What are the losses called as core loss?

Iron losses are also called as core losses or magnetic losses. These are constant losses and independent of load.

What is meant by core loss?

Definition of core loss

: energy wasted by hysteresis and eddy currents in a magnetic core (as of an armature or transformer)

TRANSFORMER LOSSES! TYPES OF TRANSFORMER LOSSES! HYSTERISIS LOSS! EDDY CURRENT LOSS! COPPER LOSS

How do you get core loss?

Core loss is generated by the changing magnetic flux field within a material, since no magnetic materials exhibit perfectly efficient magnetic response. Core loss density (PL) is a function of half of the AC flux swing (½ B=Bpk) and frequency (f).

How does core loss occur?

The term core loss relates to the total energy lost through the generation of heat. Core loss is the loss that occurs in a magnetic core due to alternating magnetization, which is the sum of the hysteresis loss and the eddy current loss.

What is core loss in motor?

Core loss in magnetic material is a measure of the heat generated within the material as a result of the alternating current. High core losses result in poor electric motor thermal efficiency. An inefficient magnetic part can drag down an entire AC electric motor design.

What is the formula of iron loss?

Iron loss or core loss (P_i)

k_h = It is a constant which is proportional to the volume, quantity of the core material and the units used. k_e = It is a constant which is proportional to the volume, resistivity of the core material, thickness of laminations and the units used.

Why iron losses are called as constant losses?

The iron practically remains constant under all load conditions i.e., they are independent or irrespective of the load condition. Hence, the iron losses are also called constant losses, and they are composed of two losses.

What is iron loss in motor?

Iron losses can be divided into hysteresis losses, eddy current losses and additional losses. Iron losses are given per weight and depend on the frequency and the maximum flux density. This means that the faster the motor rotates, the higher the iron losses.

What is core and copper losses?

Copper losses are an undesirable transfer of energy, as are core losses, which result from induced currents in adjacent components. The term is applied regardless of whether the windings are made of copper or another conductor, such as aluminium. Hence the term winding loss is often preferred.

What is meant by copper loss?

Copper loss is the term used to describe the energy dissipated by resistance in the wire used to wind a coil. In 99.9% of cases this wire will be made of copper, whose resistivity at 20°C is about 1.73 × 10^–8 Ω m.

What are types of core losses in transformer?

The four main types of loss are resistive loss, eddy currents, hysteresis, and flux loss.

What is core loss resistance?

loss resistance is calculated by no-load core loss and no-load. back EMF, especially field weakening, which induces distortion. of flux density distribution in stator region [7].

What are the two components of core loss?

They are sometimes described as 'core losses'. The two loss mechanisms are hysteresis and eddy current losses.

What is the unit of iron loss?

Unit of iron loss is : The iron loss is consists of two different losses viz. eddy current lossand hysteresis loss.

What are the two 2 main types of losses in a motor?

There are two main kinds of losses in electric motors, which are often referred to as iron losses and copper losses. Dealing first with iron losses, these are made up of two 'components', namely eddy current losses and hysteresis losses.

How do you calculate core loss in a motor?

The total stator and rotor core loss is determined by multiplying the loss in one slot pitch section of stator and rotor with the number of slots. Eventually, the total core loss of the motor is determined by adding the stator and rotor losses.

Does core loss change?

The first is “core” loss (also called no-load loss), which is the result of the magnetizing and demagnetizing of the core during normal operation. Core loss occurs whenever the transformer is energized; core loss does not vary with load.

What is core loss component?

The two main components of the core loss are hysteresis loss and eddy-current loss.

What is the significance of core loss in electric machine?

Losses in Machines. The estimation of core losses is important in designing, uprating, and upgrading of electrical machines. Specifically, the need for highly efficient energy conversion devices with increasing high power density (frequency and magnetic loading), the accurate prediction of core losses is important.

What are major causes of core losses in a transformer?

What is the core loss in Transformer? Core loss, also known as Iron Loss, is ultimately caused by the alternating magnetic flux in the core. Furthermore, iron loss is split into hysteresis and eddy current losses.

How do you reduce iron loss?

To reduce the iron loses in a transformers, the core must be made of a material having high permeability and high resistivity because high permeability carry high magnetic flux, and high resistivity provides low conductivity which prevent eddy currents.
